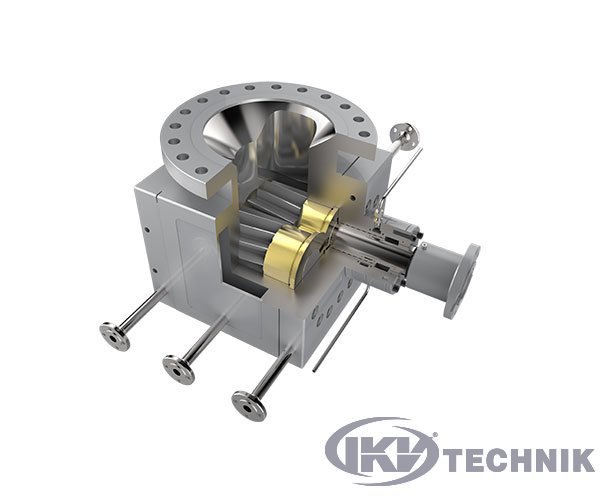

IKV - SPP Serie polymerization kettle bottom pump is a kind of more applied to chemical polymerization process of gear pump.As to better cooperate with chemical polymerization technology commonly used equipment - reaction kettle work, have done many special optimization.After repeated import geometric structure optimization design, makes the IKV - SPP Serie has good characteristics of incoming material.Special design of gear, greatly reduce the thermal and shear extrusion effect, yes material conveying more gentle.

model	Turn capacity (ml/r)	Production (L/H)	Recommended drive motor power (Kw)
22/6	1.28	0.38-15.3	0.5
22/13	2.7	0.81-32.4	0.75
22/22	4.7	1.4-56.4	1.1
28/28	10.2	3-92.	1.5
36/36	25.6	7.7-230	2.2
45/45	46.3	14-416.	4
56/56	92.6	27.8-723	5
70/70	176	52.8-1372	7.5
90/90	371	111-2893.	11
110/110	718	215-4738.	22
140/140	1490	447-8940.	45
180/180	3224	967-17409.	55
224/224	6100	1830-29000.	75
280/280	12000	3600-43200.	90
320/320	18000	5400-54000.	110
360/360	25000	7500-67500.	132

More detailed technical solutions and related information, please contact us, we will do our utmost to be of service.

---
