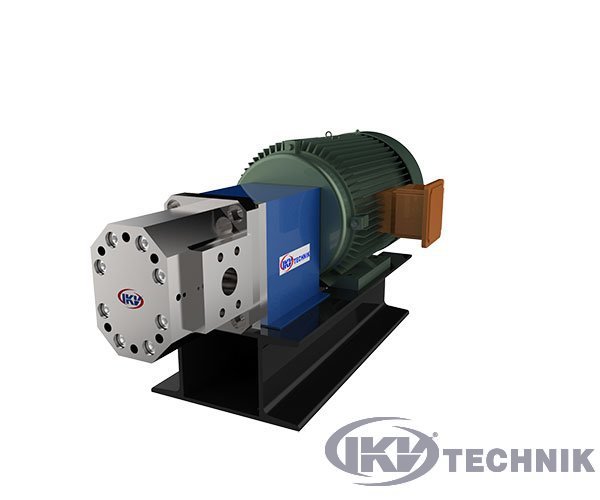

IKV-SPB Serie chemical pump is a kind of application in the low viscosity of melt transfer pump.It wide applied to the pressurization of the chemical industry, regarding simple compact structure, smooth operation, easy installation, is its outstanding advantage.In most of the time, chemical pump, is much more common with reaction kettle and kettle bottom pump used in the production of chemical polymer.

model	Turn capacity (ml/r)	Production (L/H)	Recommended drive motor power (Kw)
22/6	1.28	20-200.	0.5
22/13	2.78	42-420.	0.75
22/22	4.7	67-670.	1.1
28/28	10.2	140-1400.	1.5
36/36	25.6	276-2760.	2.2
45/45	46.3	416-4160.	4
56/56	92.6	666-6660.	5
70/70	176	1056-10560.	7.5
90/90	371	1780-17800.	11
110/110	718	2584-25840.	22
140/140	1490	4470-44700.	45
180/180	3224	7737-77370.	55
224/224	6100	10980-109800.	75
280/280	12000	14400-144000.	90

Of course, each customer has its own unique needs, different working conditions, the volume of displacement, pipe size, listed above parameters are for reference only.

More detailed technical solutions and related information, please contact us, we will do our utmost to be of service.

---
